Doppler radar – UPSC Prelims

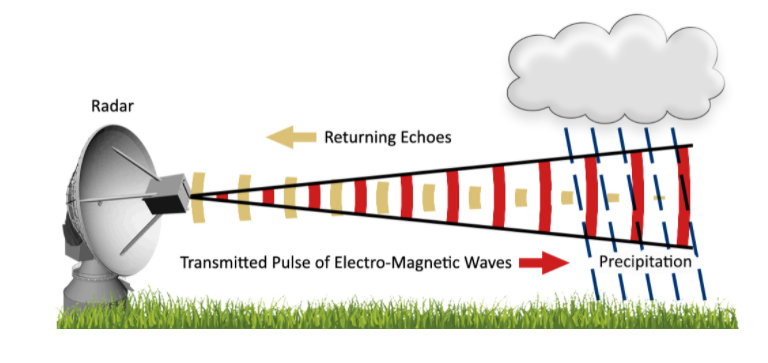

Radar (Radio Detection and Ranging):
  • It is a device which uses electromagnetic waves in the microwaves region to detect location (range & direction), altitude, intensity and movement of moving and non-moving objects.
Doppler radar:
  • Doppler radar is an observational tool used for precisely monitoring and predicting severe weather events such as hailstorms, thunder storms, cyclones and tornados.
  • It uses Doppler effect by bouncing microwave signal off desired target to produce velocity data.
  • This data helps in analysing object’s motion by altered frequency of returned signal.
  • It mainly gives information about wind velocity and precipitation.
  • Doppler radar has radius of 250 km and helps in issuing forecasts two-three hours prior to severe weather conditions.
  • It can provide area specific rain and storm warnings which are beneficial for disaster management and emergency response, aviation and related services.
  • It can be used for wind speed measurements during cyclones and thunderstorms which is not possible in conventional weather radar.

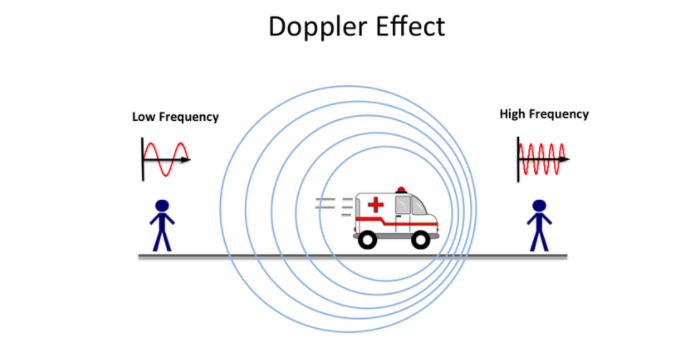

Doppler effect:
  • When the source and the signal are in relative motion to each other there is a change in the frequency observed by the observer. If they are moving closer frequency increases and vice versa.
  • It does this by bouncing a microwave signal off a desired target and analysing how the object’s motion has altered the frequency of the returned signal.
  • This variation gives direct and highly accurate measurements of the radial component of a target’s velocity relative to the radar.
